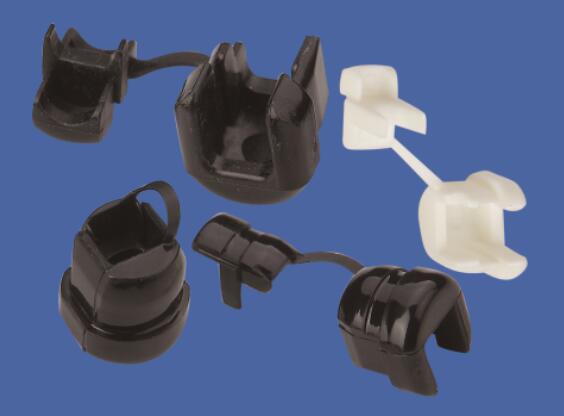

产品名称: 抗拉线扣
发布日期: 2021-06-16
点击数: 4059
二维码:
材质:尼龙66工程塑料 ,UL 94V-2阻燃等级,绝缘佳不易老化
颜色:黑色 , 白色,特色颜色可以定做
认证:通过UL、CSA及ROHS认证
用途:适用于各种电器产品及灯饰等电线出口之固定与保护。
装配方式:
形状 |
型号ModelNO. |
通用UL电线 UL Wires Accommodated |
通用电线尺寸Approx. Wire Size(mm) |
机板孔口径Mounting Hole A /B mm |
机板厚度Max. Thickness F mm |
线扣长度Lenght D mm |
包装Packing Pcs/Bag |
包装Packing Pcs/Ctn |
扁线用Flat |
2P-4 |
SPT-1 |
3 x 5.6 |
9.5 / 8.7 |
1.6 |
10.3 |
1000 |
20000 |
扁线用Flat |
3P-4 |
SPT-1 |
3 x 5.6 |
11.0 / 9.9 |
1.6 |
10.3 |
1000 |
10000 |
扁线用Flat |
3W-1 |
SPT-1 |
3 x 5.6 |
11.0 / 9.9 |
2.5 |
10.3 |
1000 |
10000 |
扁线用Flat |
4N-4 |
SPT-2 |
3.71/3.8 x 7.6 |
12.7-13.1/11.8 |
1.6 |
10.3 |
1000 |
10000 |
扁線用Flat |
4K-4 |
SPT-2 |
3.71/3.8 x 7.6 |
12.7-13.1/11.8 |
2.5 |
10.3 |
1000 |
10000 |
圆线用Round |
5N-4 |
SVI / SVT |
6.4Φ - 7.4Φ |
12.7-13.1/11.5 |
1.6 |
11 |
1000 |
10000 |
圆线用Round |
5P-4 |
SVI / SVT |
6.4Φ - 7.4Φ |
12.7-13.1/11.5 |
2.5 |
11 |
1000 |
10000 |
圆线用Round |
6N-4 |
SJT 3C#18 |
7.6Φ |
15.9/14.0 |
1.6 |
14.8 |
500 |
5000 |
圆线用Round |
6P-4 |
SJT3C#18 |
7.6Φ |
15.9/14.0 |
3.2 |
14.8 |
500 |
5000 |
圆线用Round |
6N3-4 |
SJT3C#16 |
8.2Φ - 9.2Φ |
15.9/14.0 |
1.6 |
14.8 |
500 |
5000 |
圆线用Round |
6P3-4 |
SJT3C#16 |
8.2Φ - 9.2Φ |
15.9/14.0 |
3.2 |
14.8 |
500 |
5000 |
