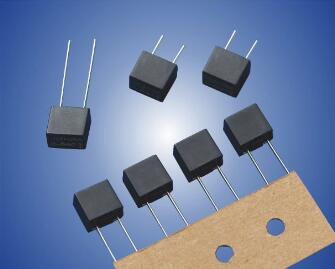

产品名称: 450V方形保险丝
发布日期: 2018-05-15
点击数: 6290
二维码:
简述: 方形保险丝,目前行业内最大电流
1. 适用范围Scope of application
本产品适用于各种电子机器内的电路中起过电流保护作用.
This product is suitable for various kinds of electronic machines to work for over current protection.
2.相关标准及认证Relevant Standards and Certification
2.1执行标准Standards:UL148-1
2.2认证Certification:
认证 Certification |
认证范围 Scope of Certification |
额定电压 Voltage Rating |
证书编号 Certification No. |
UL |
50mA~10A |
450V |
E493749 |
3. 标示 Marking
保险丝应有下列标示The fuse shall have the following marking :
巨凌标志
延时符号 Time-lag Symbol:T
额定电流 Ampere rating:1A
额定电压 Voltage rating:450V
认证符号 Approved Symbol:
